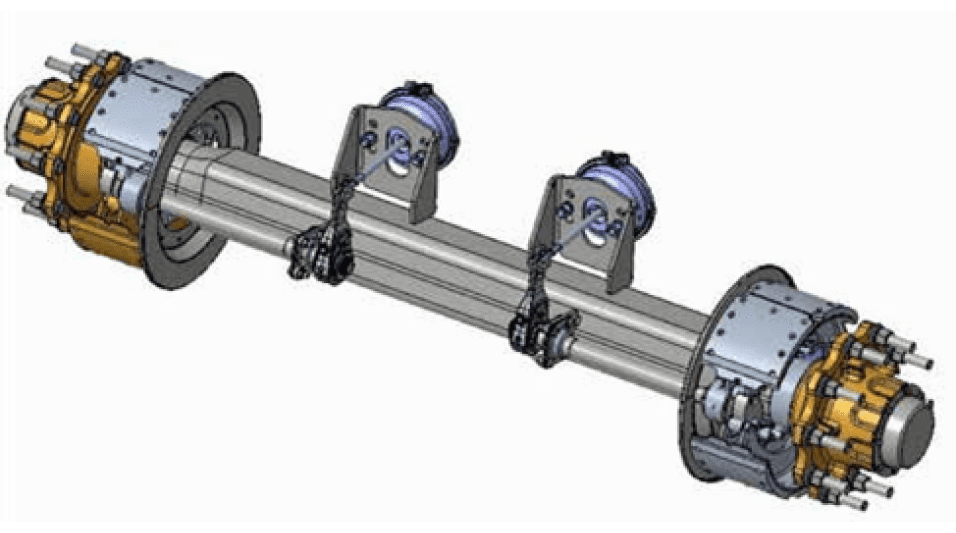

Trailer - Dummy Axle

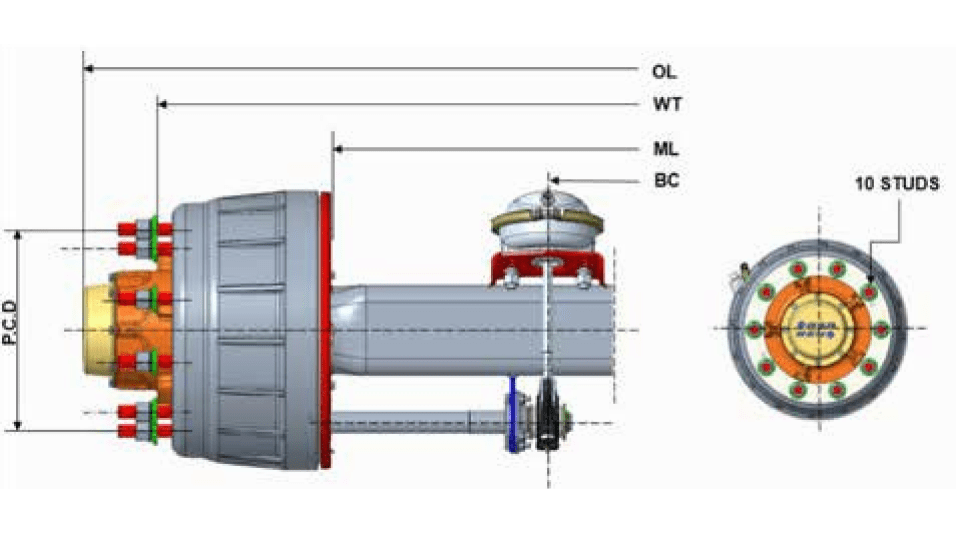

Axle Capacity Wheel Track (WT) Beam Size Square Break Size Overall Length (Ol) Break Actuator Distance (BC) Cam Shaft Length Wheel Bolt (No x Size-PCD) Dust Cover inside to inside (ML) Break Actuator/Chamber Wheel Size Weight (KG)
13,000 kg 1840 mm 150x150 mm 0 410x180 mm 2120 mm 564 mm 465 mm 634 mm (0) 10x M22x2.5 -335 mm 1308 mm Type 30, 27, 24 20" 379
13,000 kg 1950 mm 150x150 mm 0 410x180 mm 2220 mm 664 mm 465 mm 634 mm (0) 10x M22x2.5 -335 mm 1408 mm Type 30, 27, 24 20" 386
